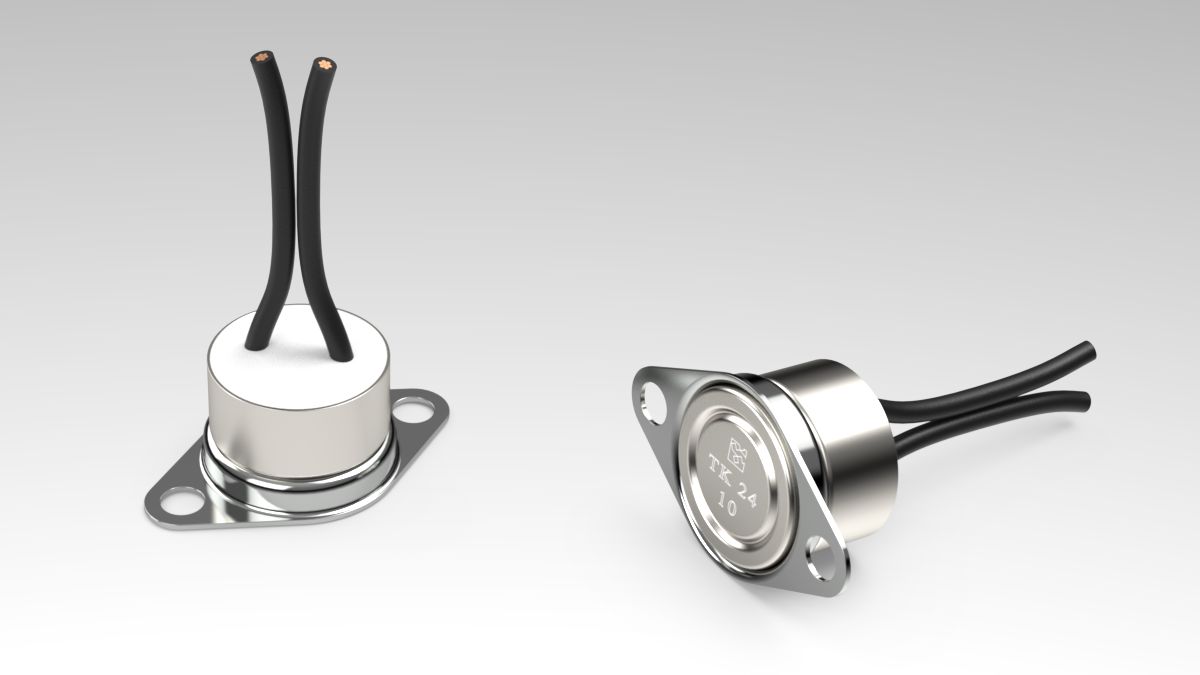

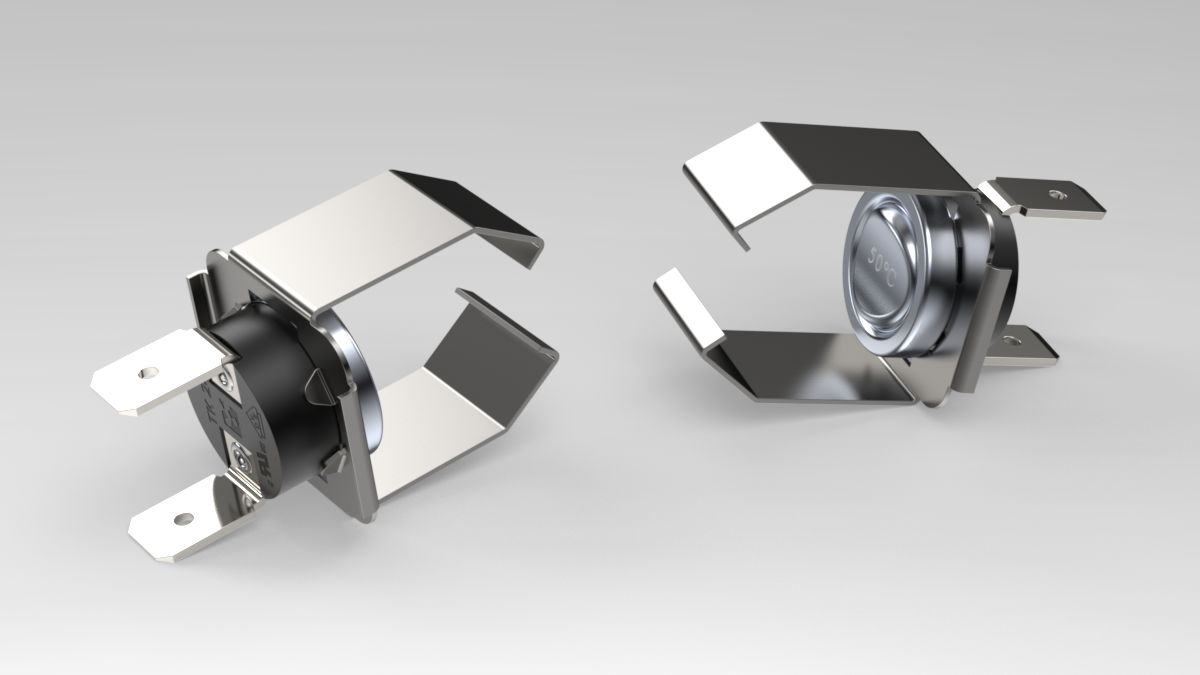

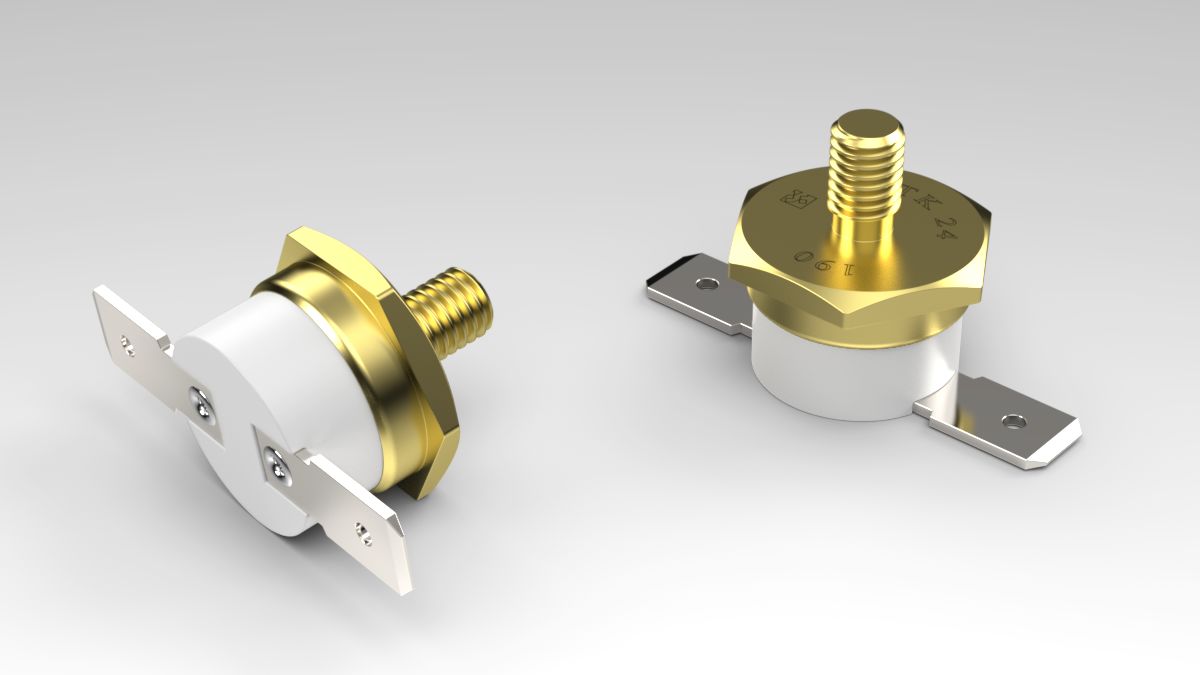

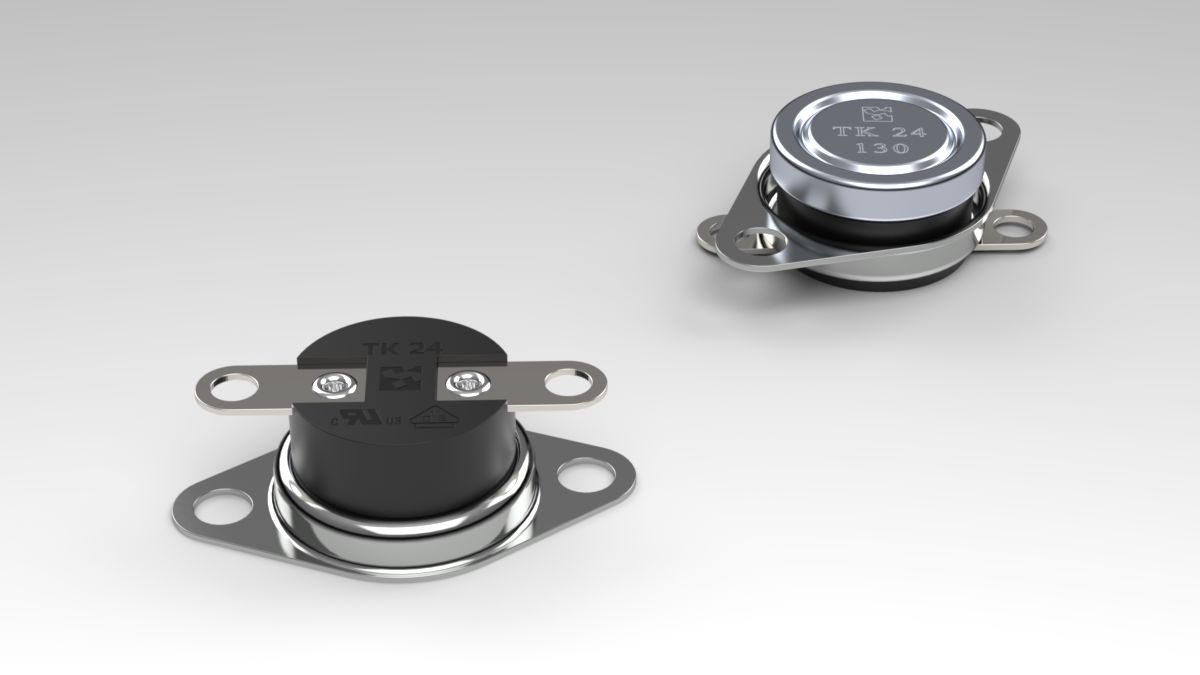

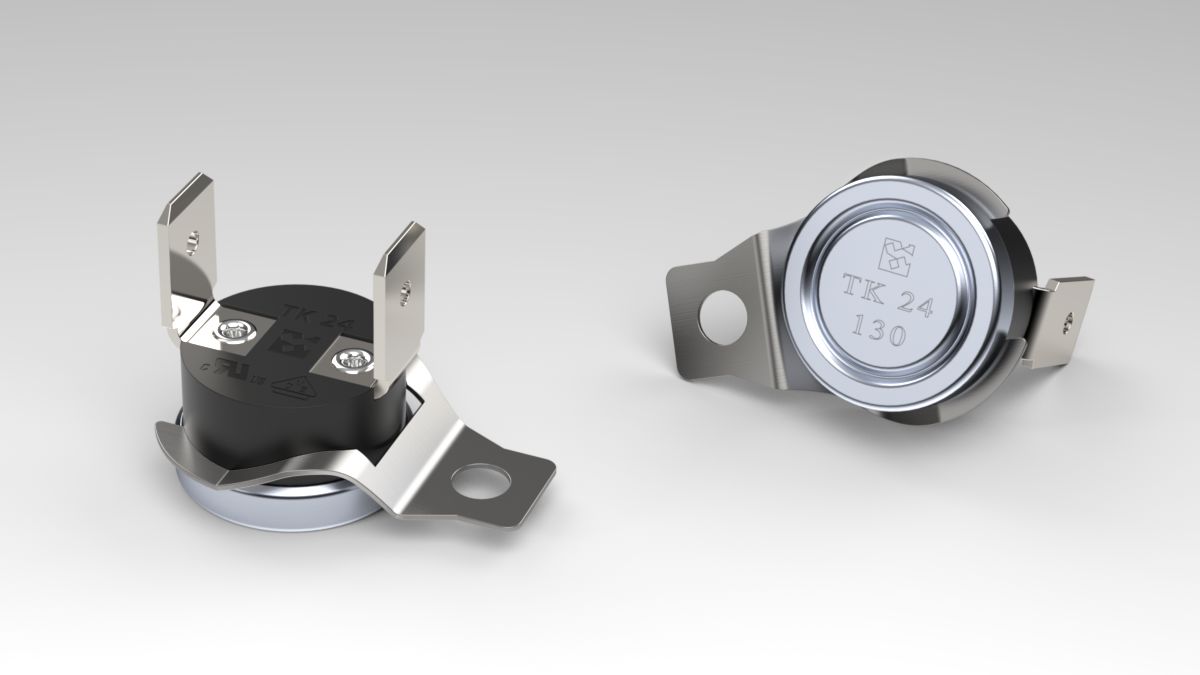

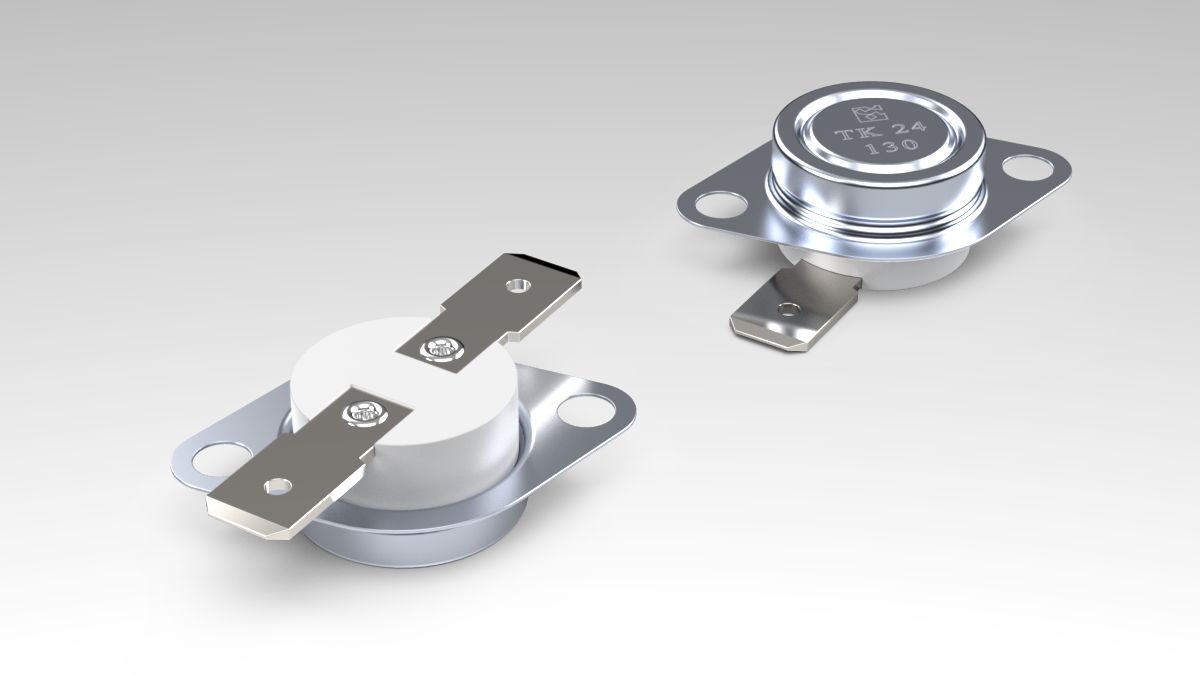

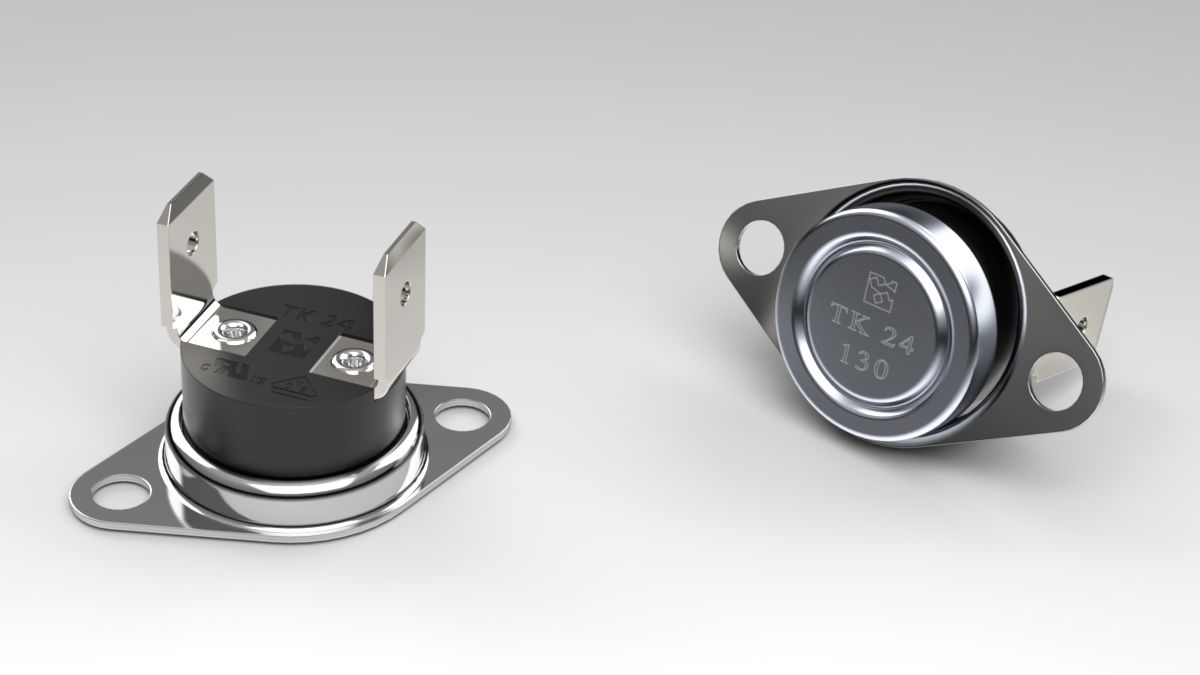

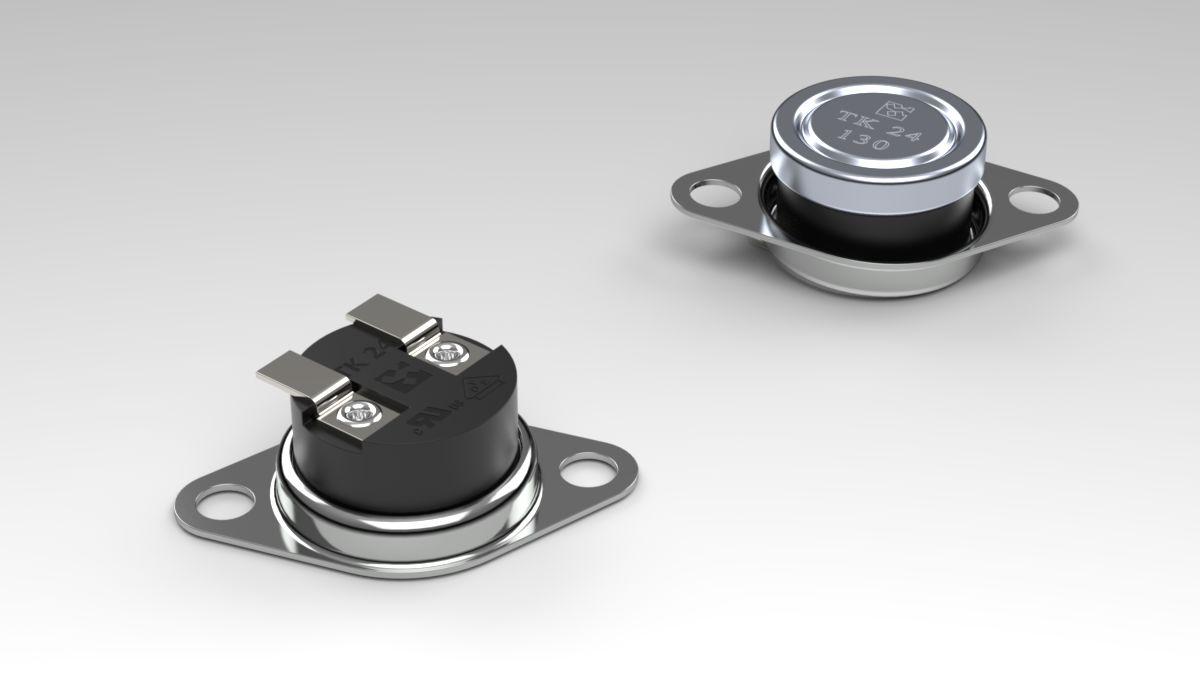

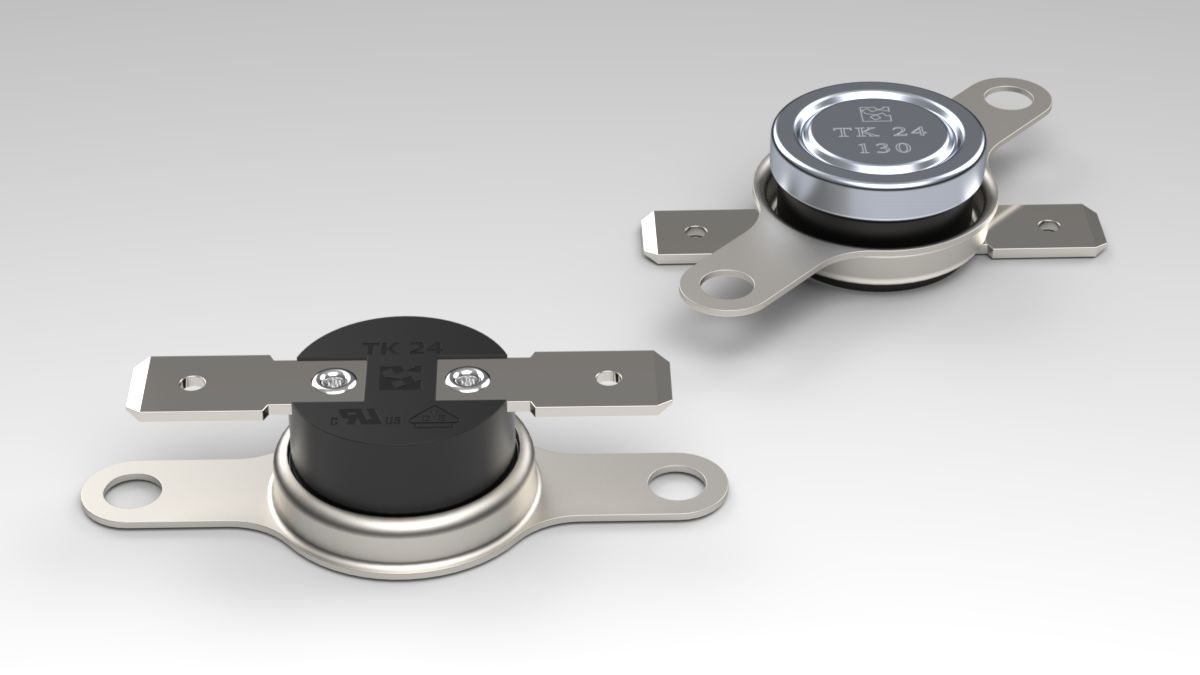

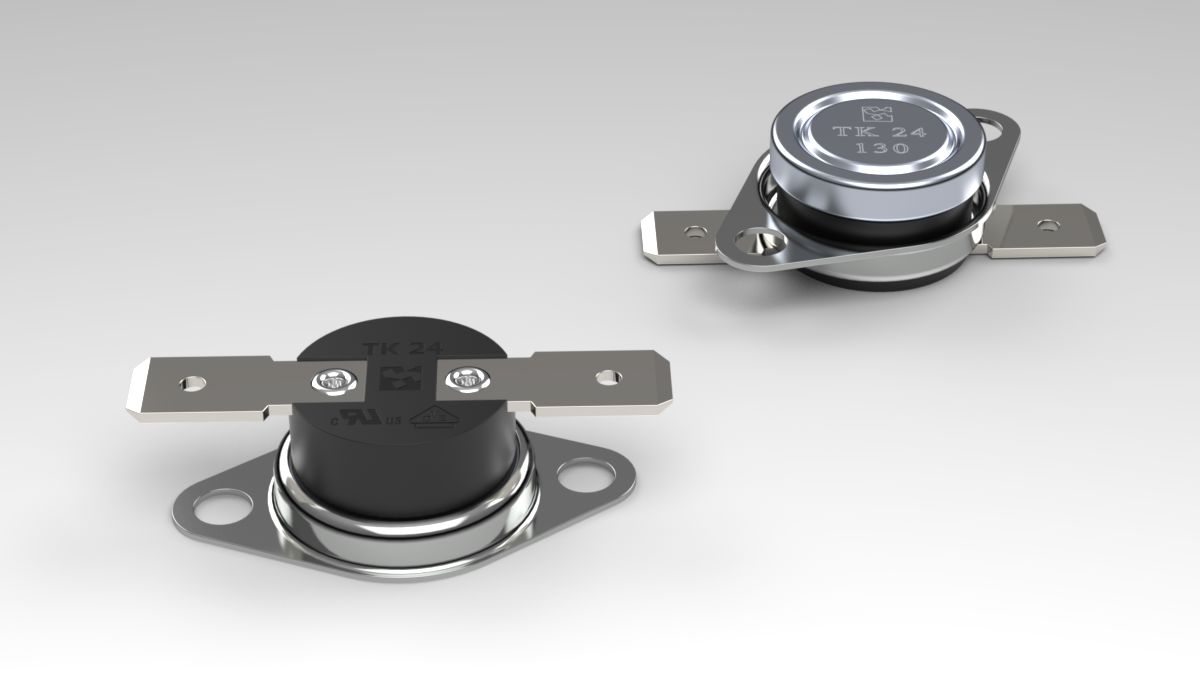

Bimetallic temperature sensitive switch or cyclic operation device with automatic reset control - Thermorex TK24
This is a cyclic operating temperature sensitive device, which is intended to control the temperature between two particular values under normal operating conditions, automatically switching on or off the electrical circuit.
This thermostat can be built to either open or close its electrical contacts as the temperature increases. Once the temperature of the bimetal disc has returned to the specified reset temperature, the contacts will automatically return to their original state.
Besides its variety of standard configurations the thermostat can also be customized to the specific technical needs of the customer, assuring maximum design flexibility and usage in broad range of temperature control applications for consumer, industrial and commercial products.
Download the product brochure| Parameter | Value |
|---|---|
| Rated voltage, V, not more | ~250 |
| Rated current, A, at power coeff. 0.95, not more | 16 |
| Rated current, A, at power coeff. 0.6, not more | 10 |
| Number of automatic cycles, at rated current 16 А and power coeff. 0.95, not less than | 30000 |
| Number of automatic cycles, at rated current 10 А and power coeff. 0.95, not less than | 100000 |
| Operating temperature, °C | -45°C — 200°C |
| Tolerance of operating temperature, °C | ±3; ±6 |
| Reset temperature, lower than operating temperature, °C, by | 30±10; 50±10 |
| Transient resistance, Ω, not more | 0.05 |
| Contact operating time, ms, not more | 3 |
| Electric strength of insulation, V, not less than | 1500 |
| Insulation resistance, MΩ, not less than | 50 |
| Heating speed, K/min | minimum-0.1, maximum-1.0 |
| Degrees of protection provided by enclosure | IP4X; IP64; |
