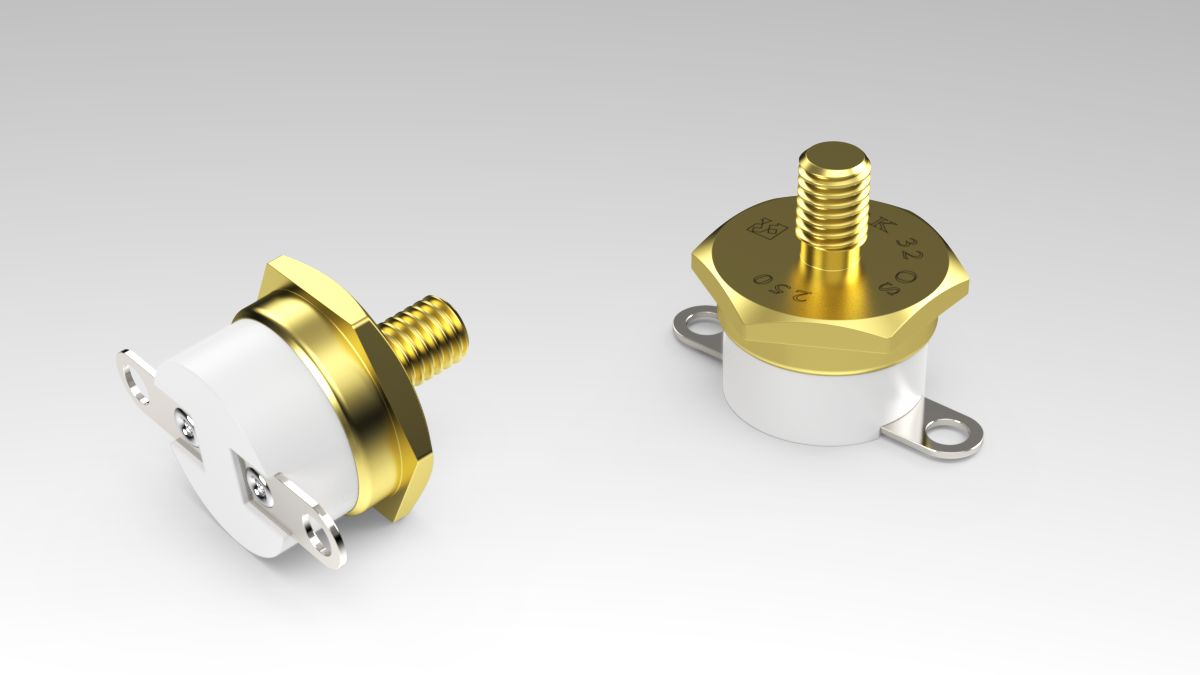

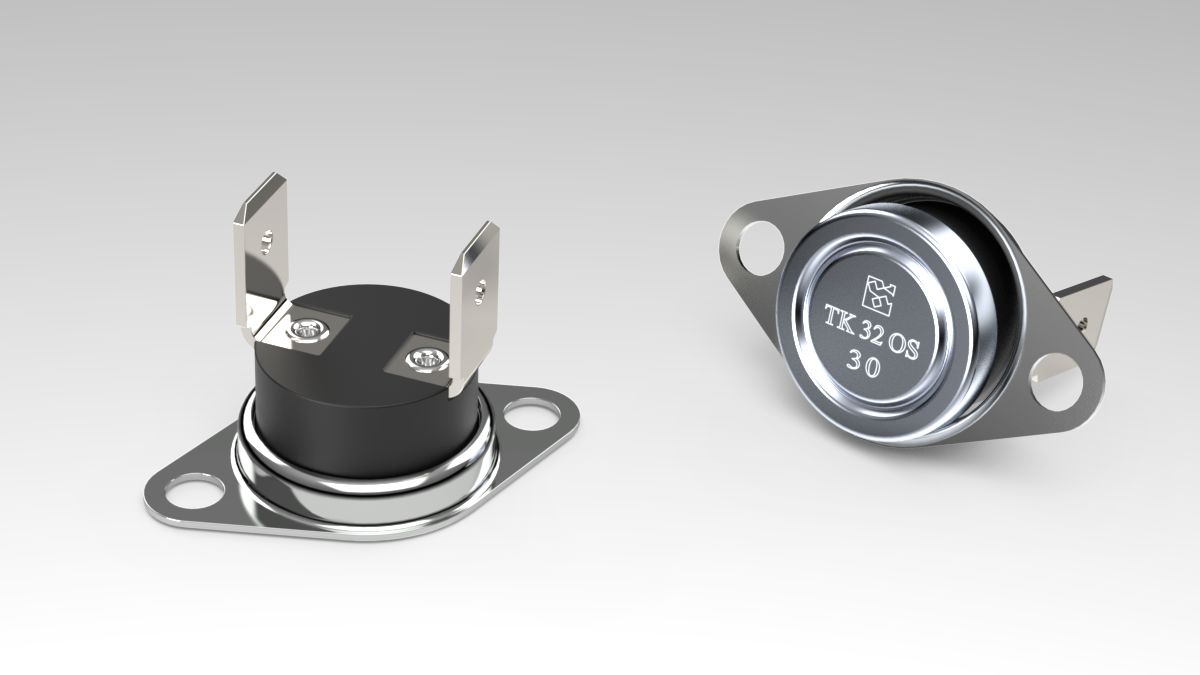

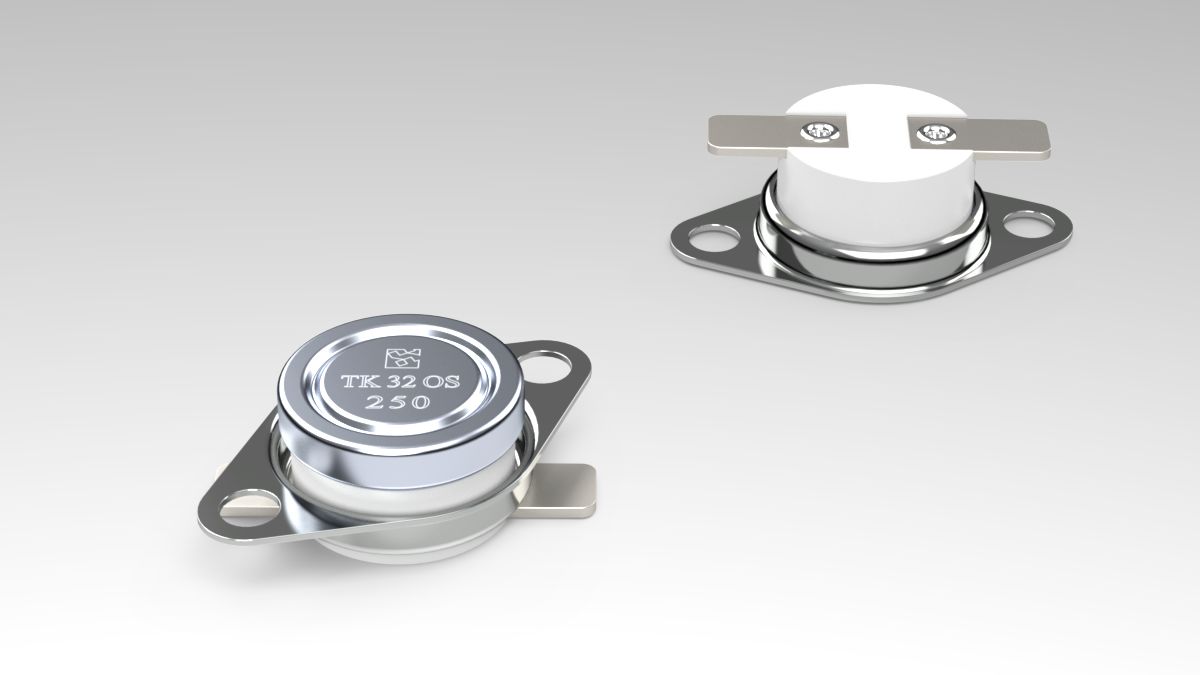

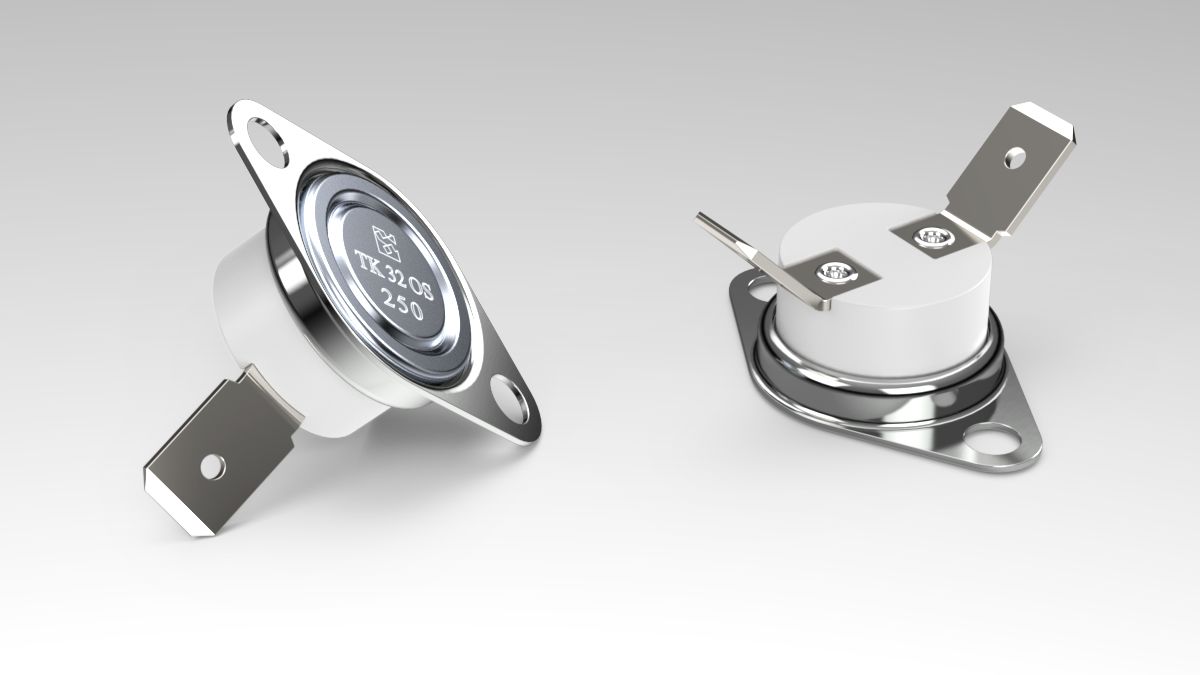

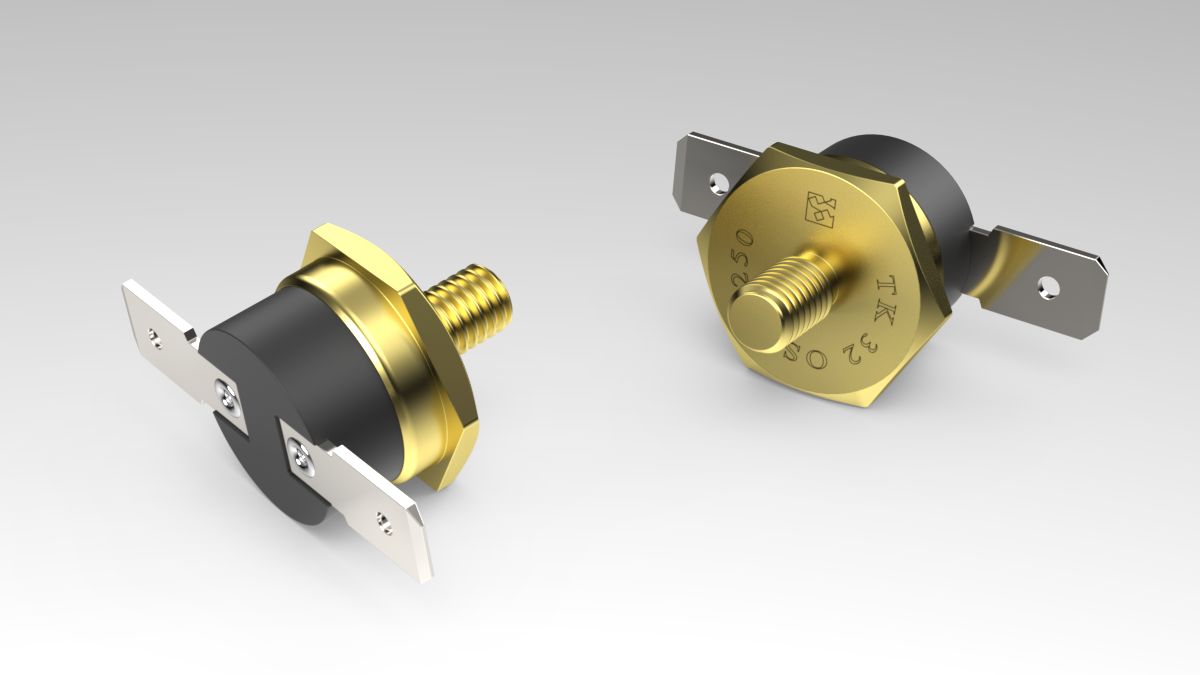

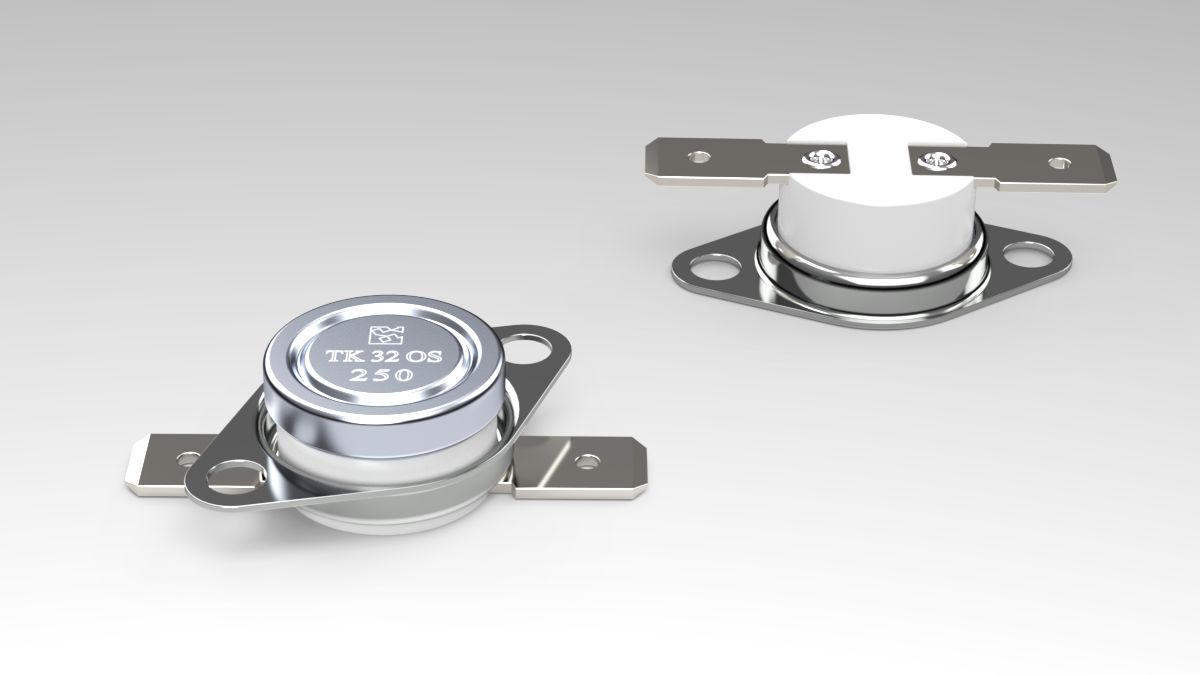

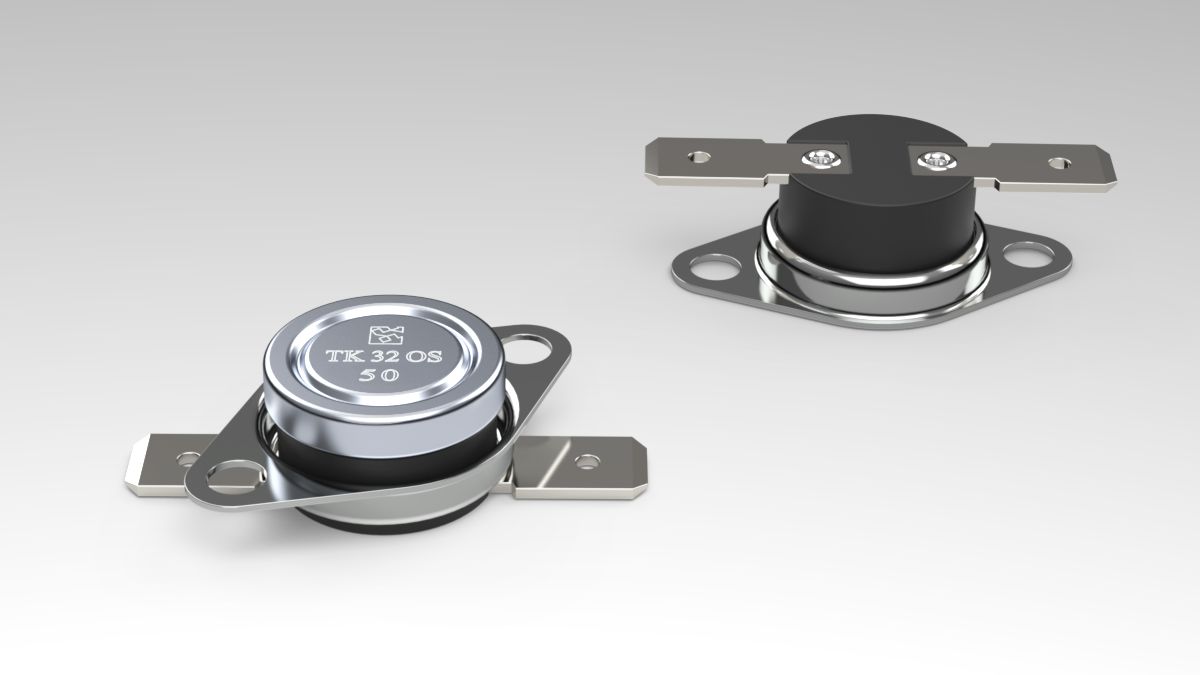

One-shot bimetallic sensitive temperature limiter - Thermorex TK32OS

Temperature limiter TK32OS (one shot) (DIN EN 60730-1) is a temperature sensitive device, which is intended to keep a temperature below one particular value during normal operating conditions, automatically switching off the electrical circuit. This device is operating with one-shot action and has no reset option. This temperature limiter is available only with contacts that open as the temperature increases.

APPLICATIONS: This temperature limiter prevents overheating in a broad range of consumer, industrial and commercial products.

Note: With variety of standard and custom made configurations the limiter provides reliable one-shot over-temperature protection and meets the specific technical needs of our customers, assuring maximum design flexibility.

 Download the product brochure
Parameter Value
Rated voltage, V, not more ~250
Rated current, A, at power coeff. 0.95, not more 16
Rated current, A, at power coeff. 0.6, not more 10
Number of automatic cycles, at rated current 16 А and power coeff. 0.95, not less than one-shot
Operating temperature, °C 30°C — 250°C
Tolerance of operating temperature, °C ±3
Temperature of self-reset ≤ -25°C
Transient resistance, Ω, not more 0.05
Contact operating time, ms, not more 3
Electric strength of insulation, V, not less than 1500
Insulation resistance, MΩ, not less than 50
Heating speed, K/min minimum-0.1, maximum-1.0
Degrees of protection provided by enclosure IP4X; IP64;
