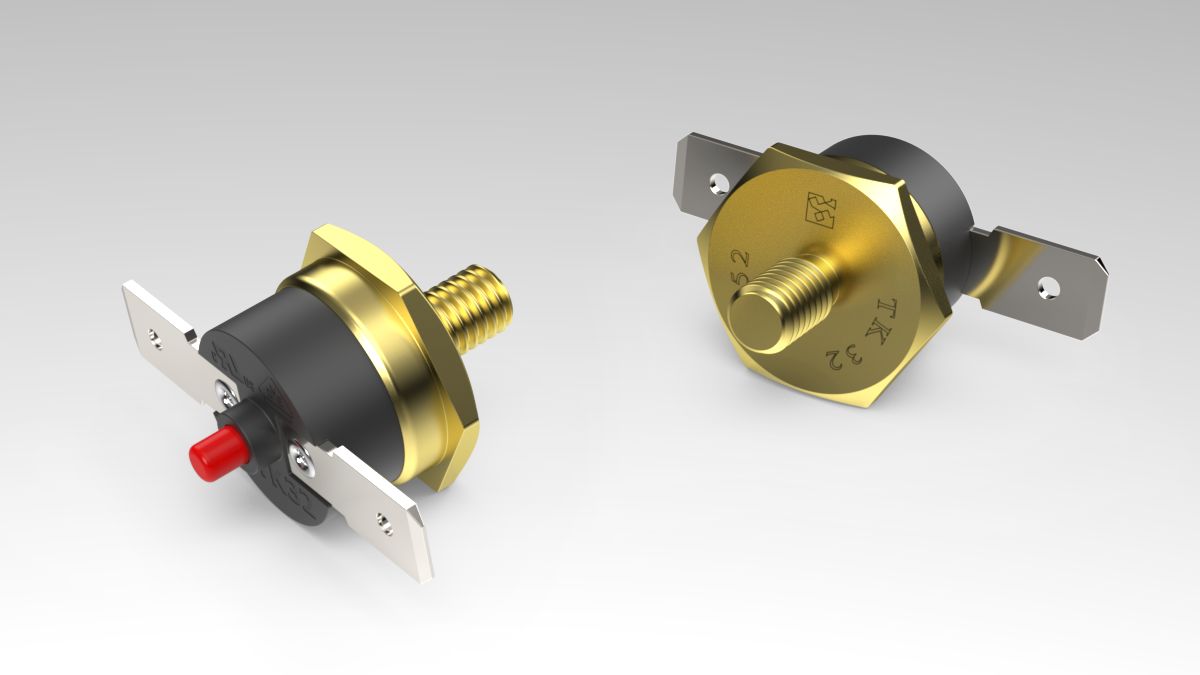

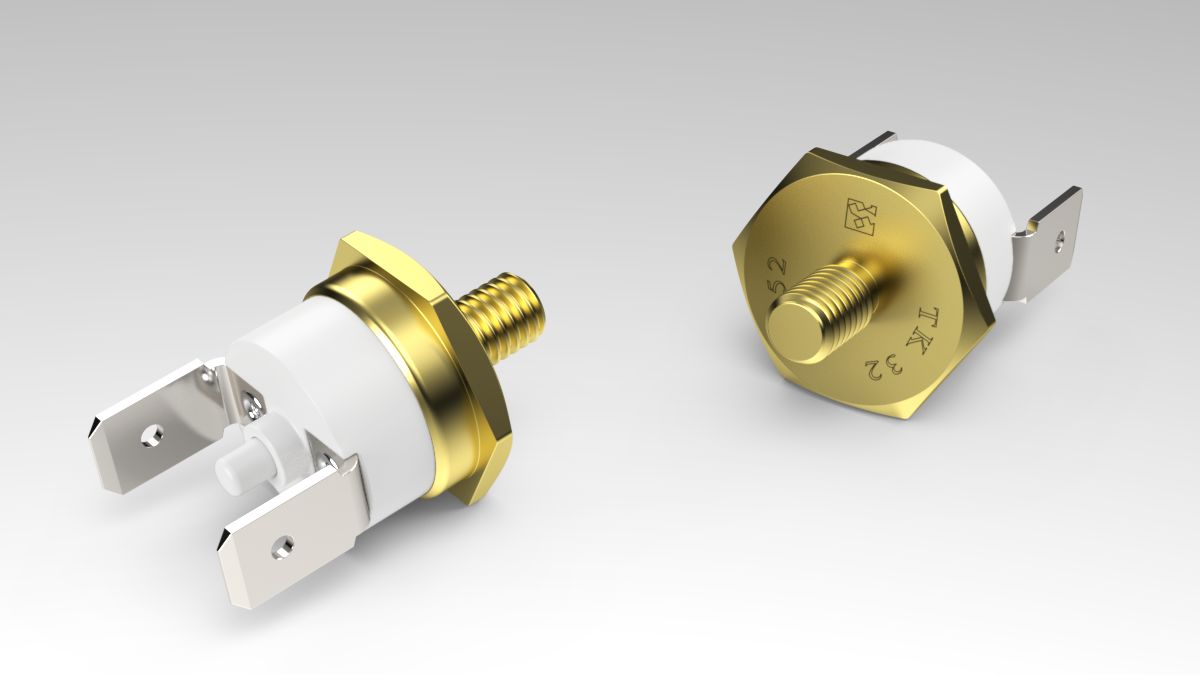

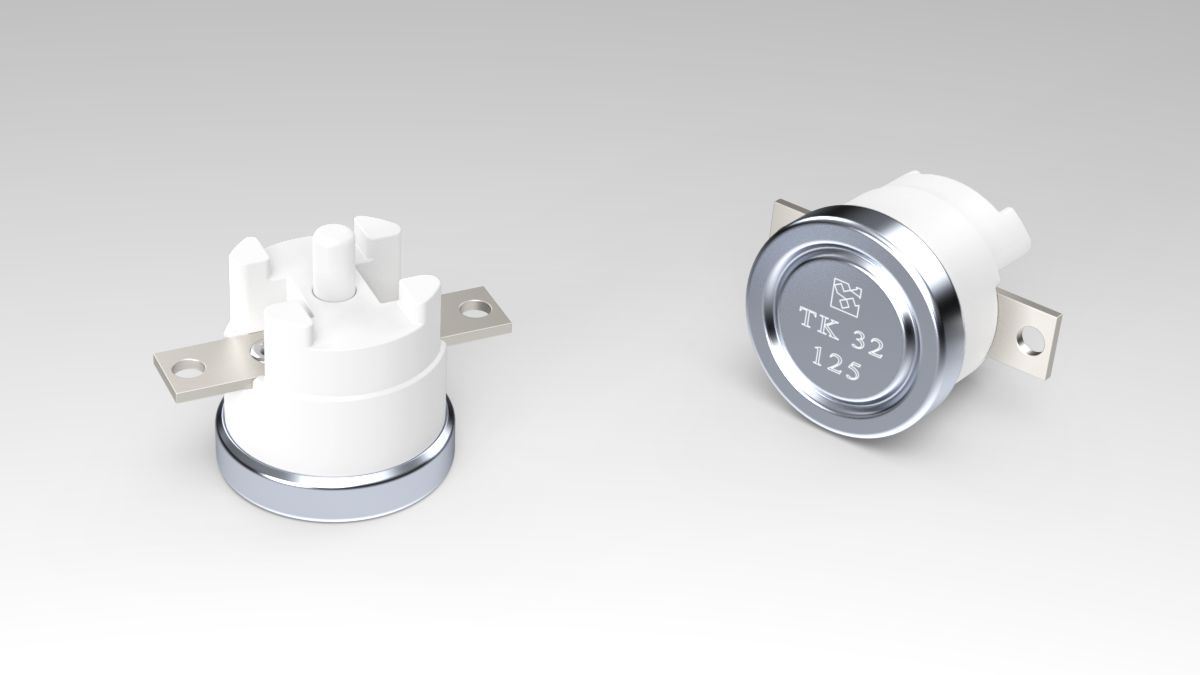

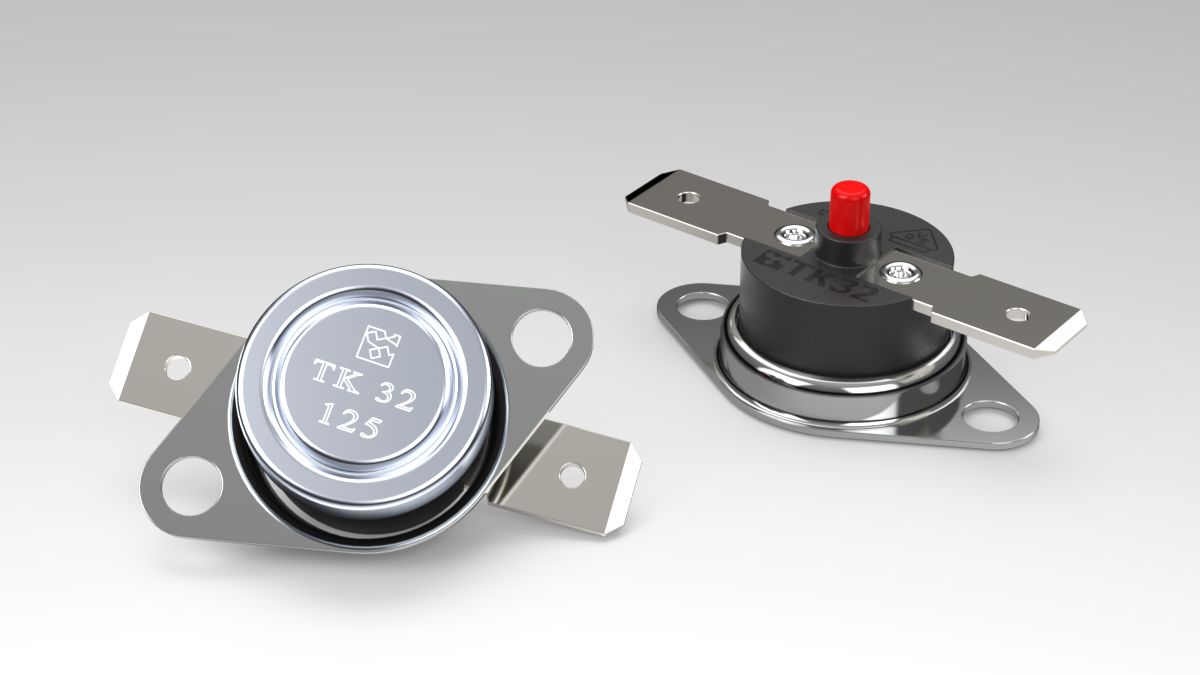

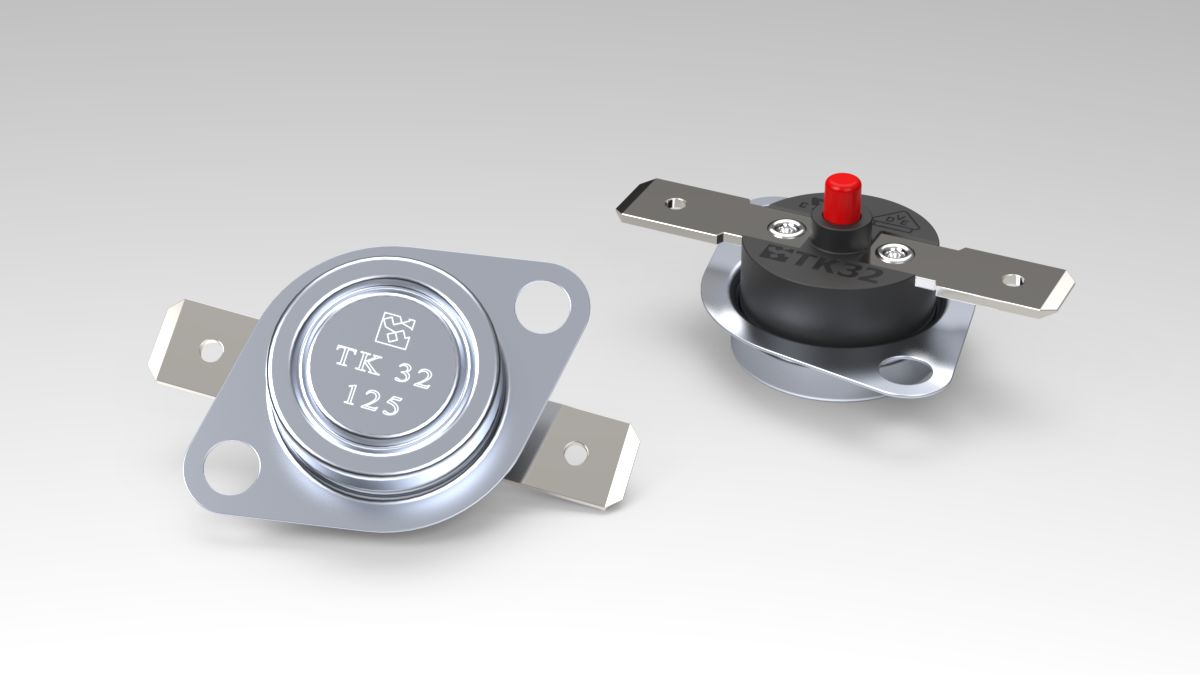

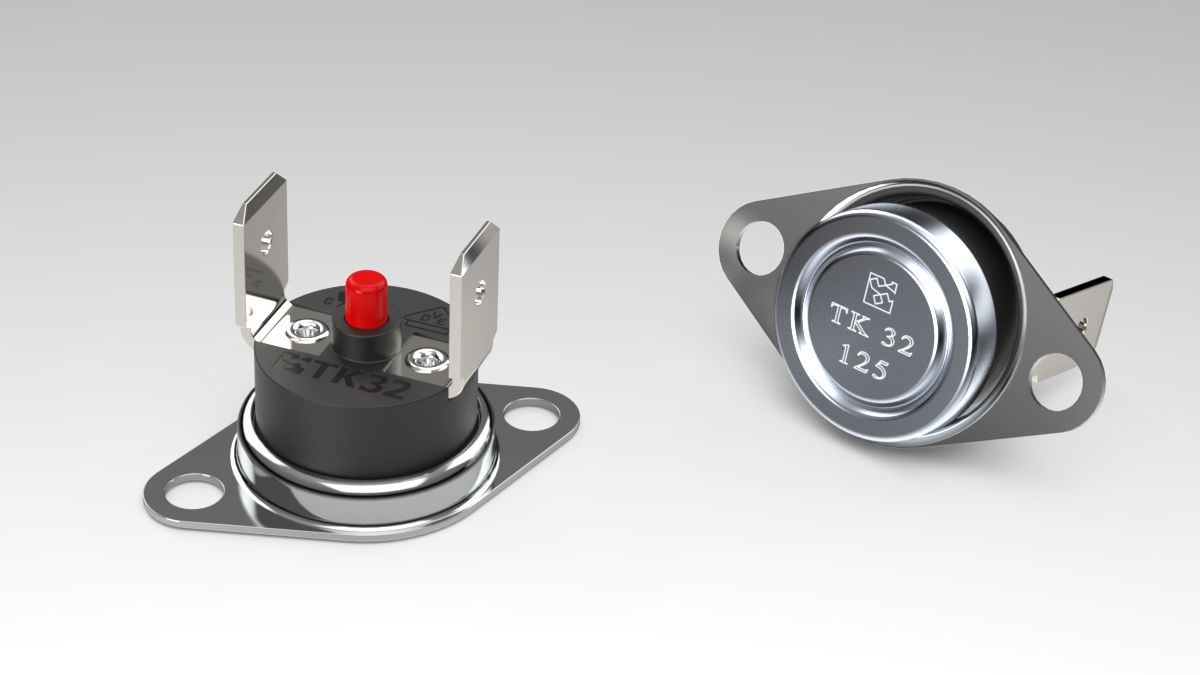

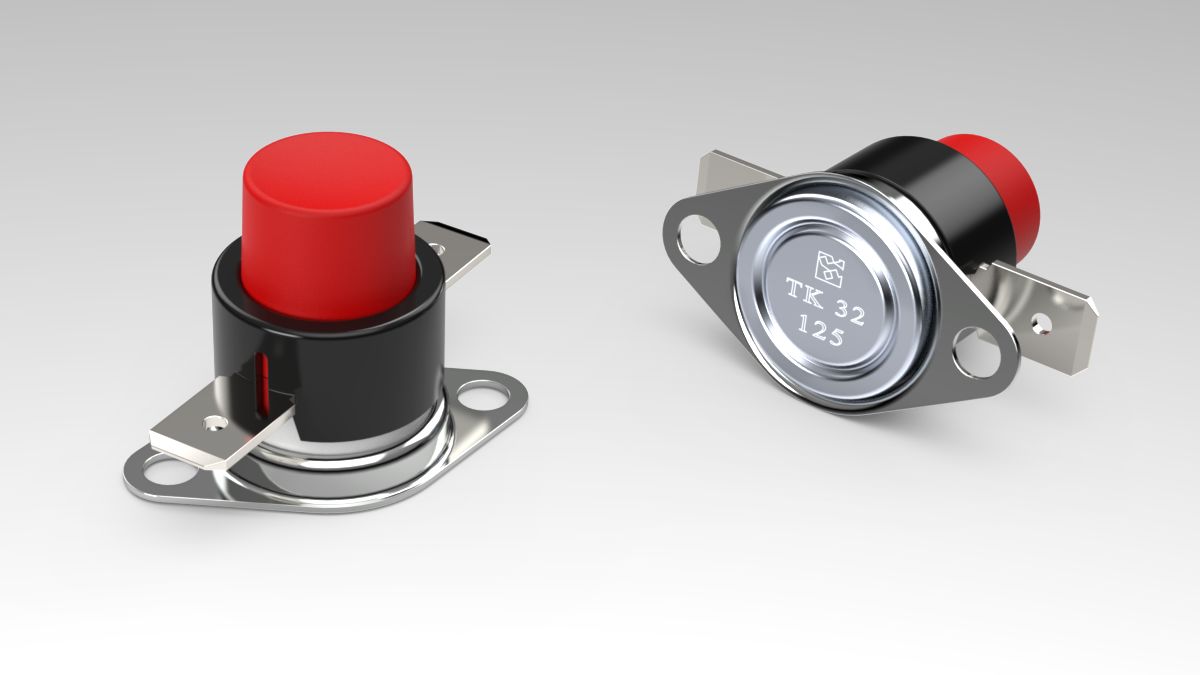

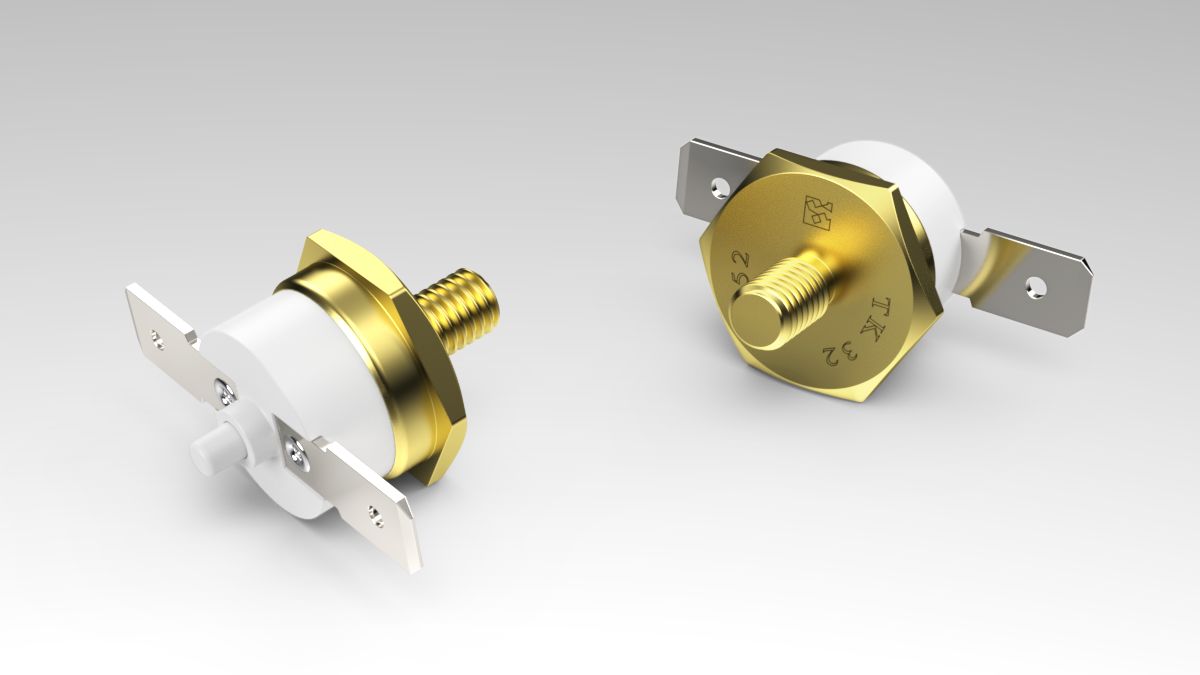

Bimetallic sensitive temperature limiter with manual reset control- Thermorex TK32

Temperature limiter TK32 (DIN EN 60730-1) is a temperature sensitive device, which is intended to keep a temperature below one particular value during normal operating conditions, automatically switching off the electrical circuit. This device is not self-resetting and operates with manual reset option. The reset is achieved by manually pushing on the reset button after the device has cooled below the open temperature value.

The choice of its operational position is free. TK32 has normally closed contacts.

APPLICATION: This temperature limiter prevents overheating in a broad range of consumer, industrial and commercial products.

Note: Besides its variety of standard configurations the limiter can also be customized to the specific technical needs of the customer.

 Download the product brochure
Parameter Value
Rated voltage, V, not more ~250
Rated current, A, at power coeff. 0.95, not more 16
Rated current, A, at power coeff. 0.6, not more 10
Number of automatic cycles, at rated current 16 А and power coeff. 0.95, not less than 10000
Operating temperature, °C 30°C — 250°C
Tolerance of operating temperature, °C ±3; ±6
Transient resistance, Ω, not more 0.01; 0.05
Contact operating time, ms, not more 3
Electric strength of insulation, V, not less than 1500
Insulation resistance, MΩ, not less than 50
Heating speed, K/min minimum-0.1, maximum-1.0
Degrees of protection provided by enclosure IP4X; IP64
