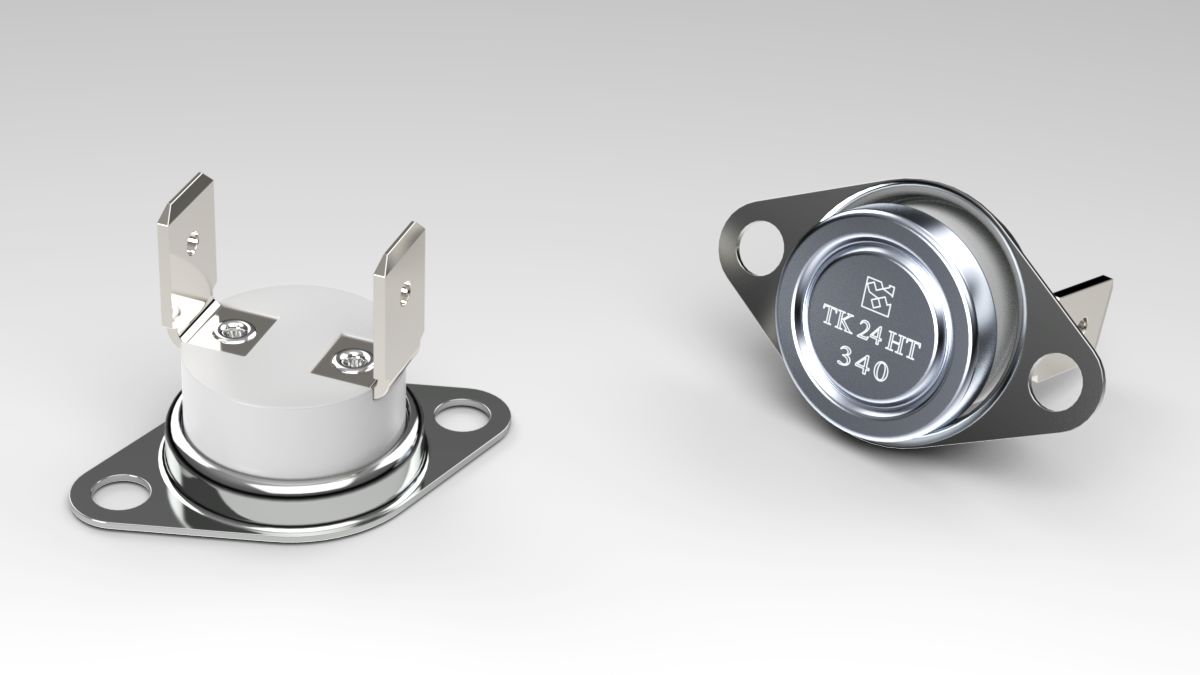

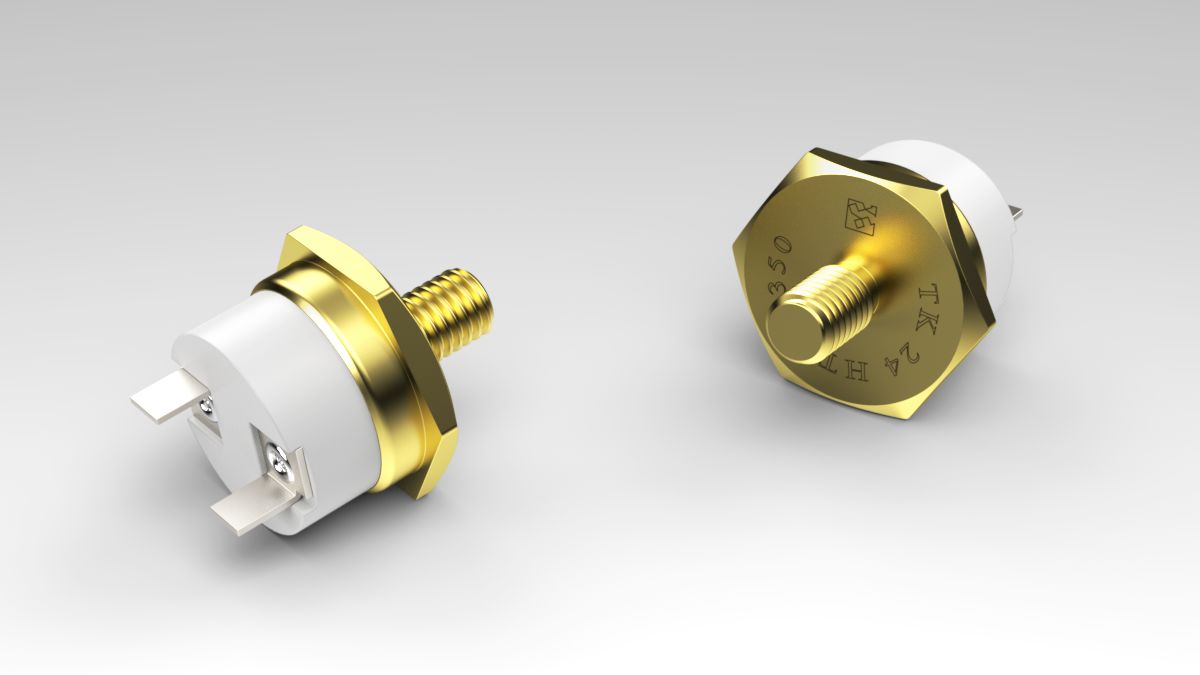

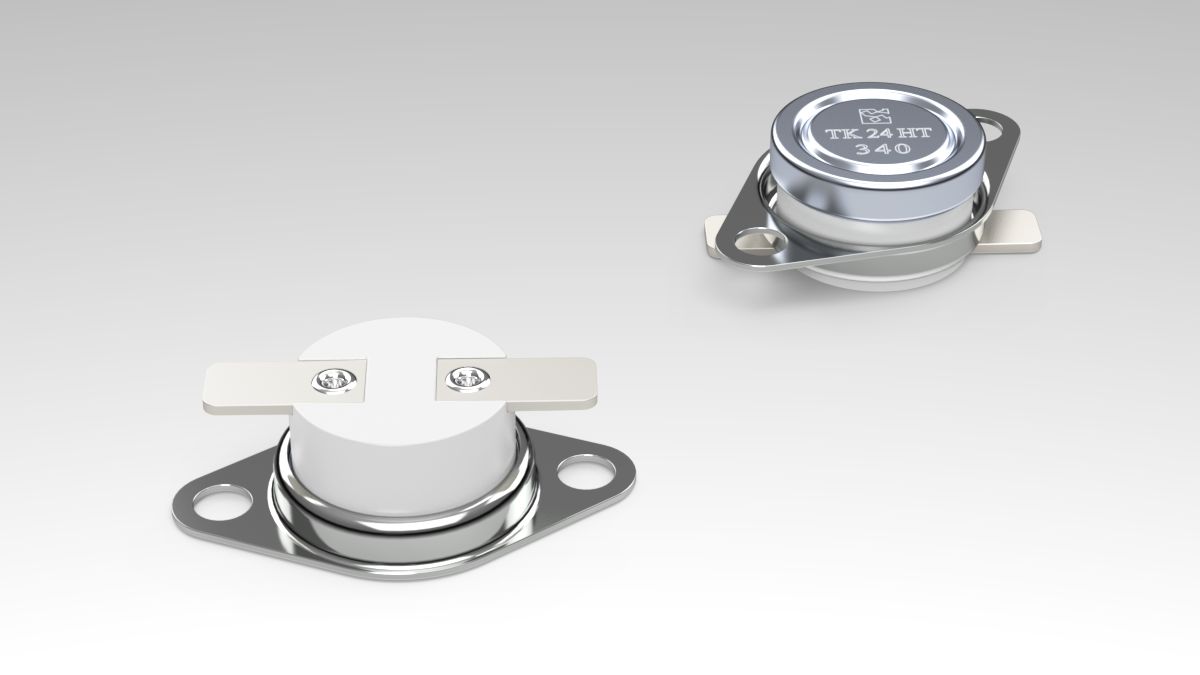

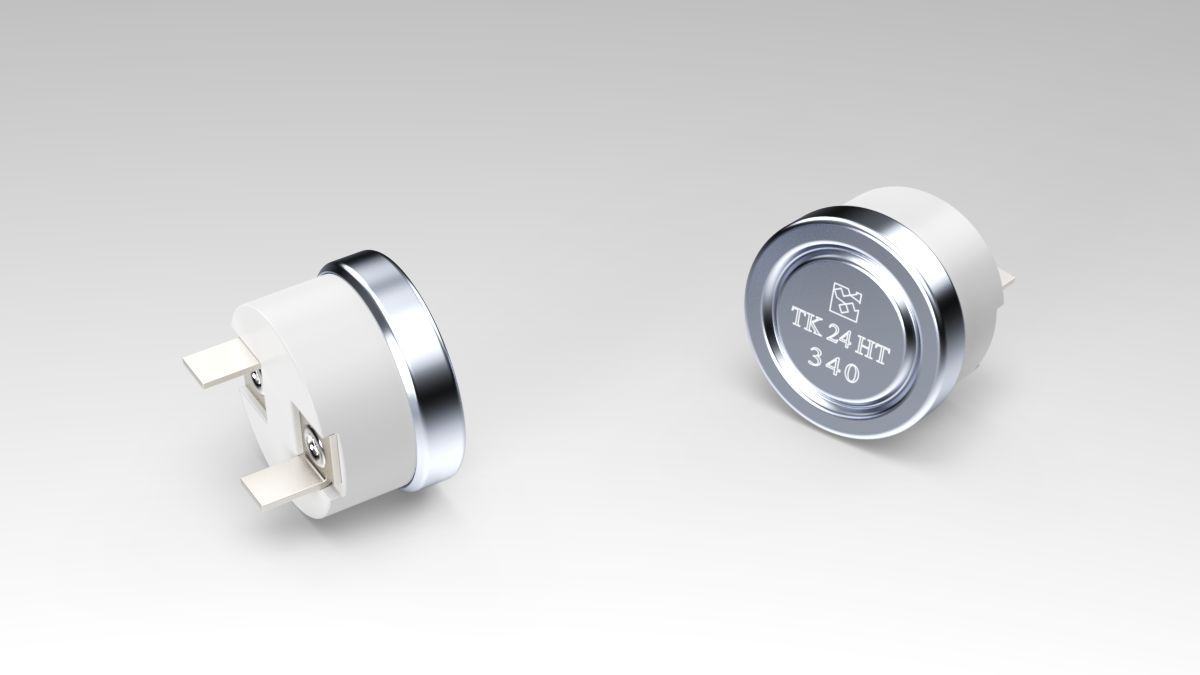

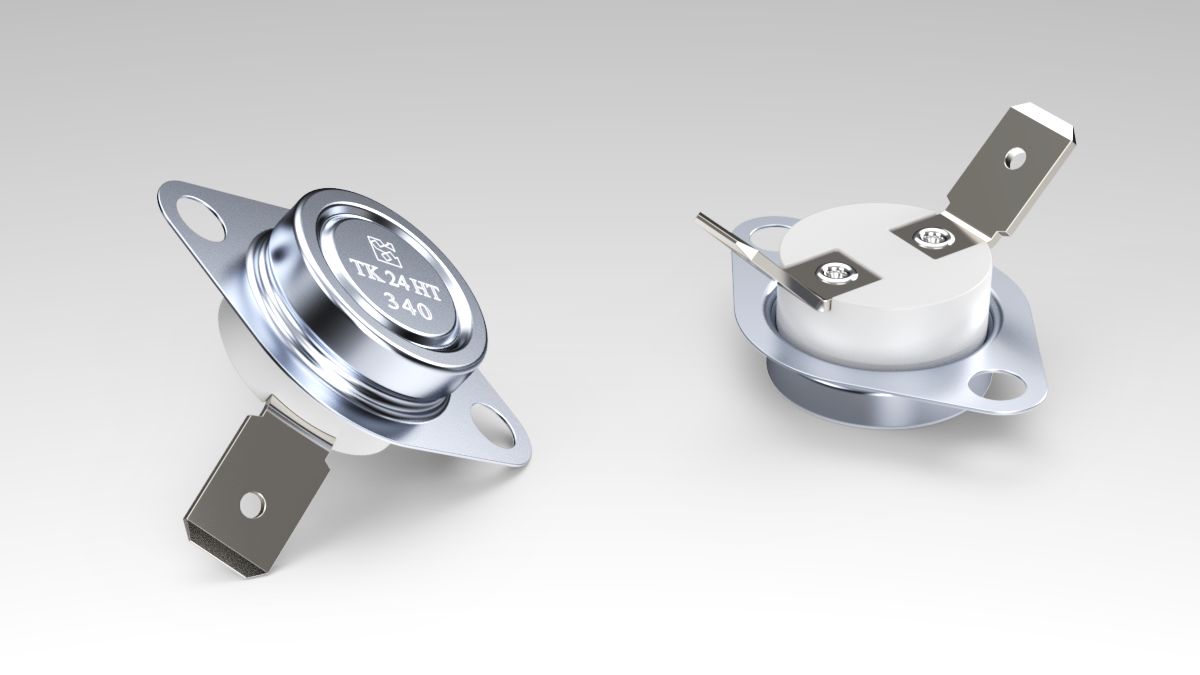

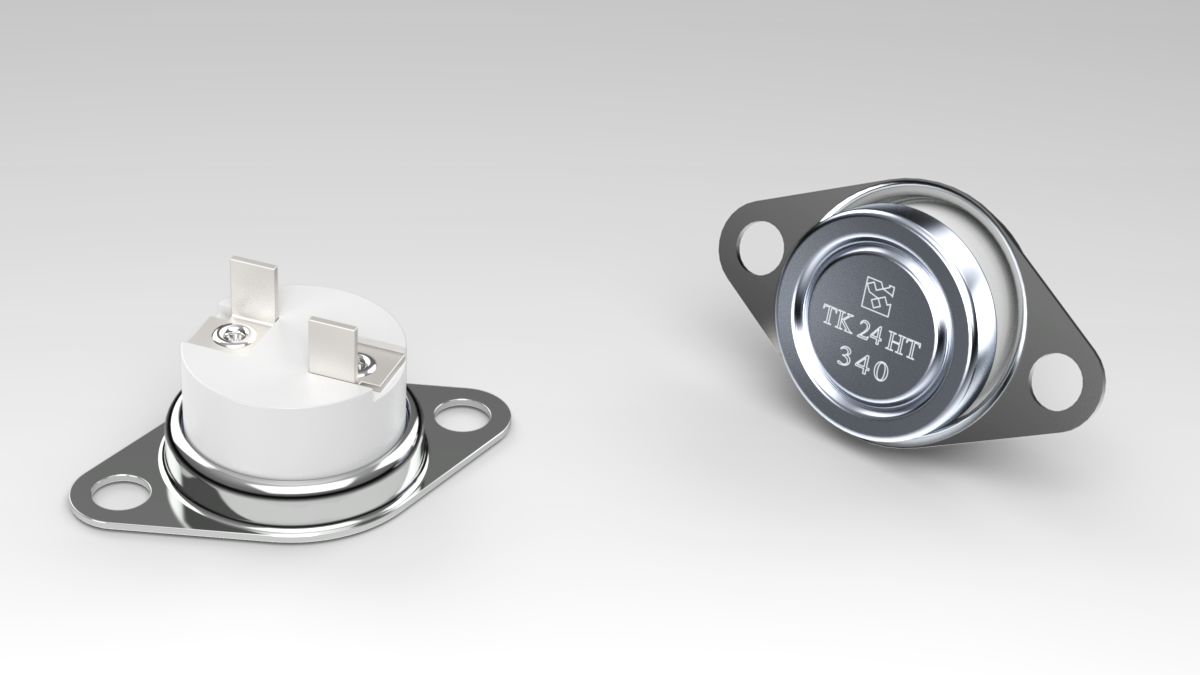

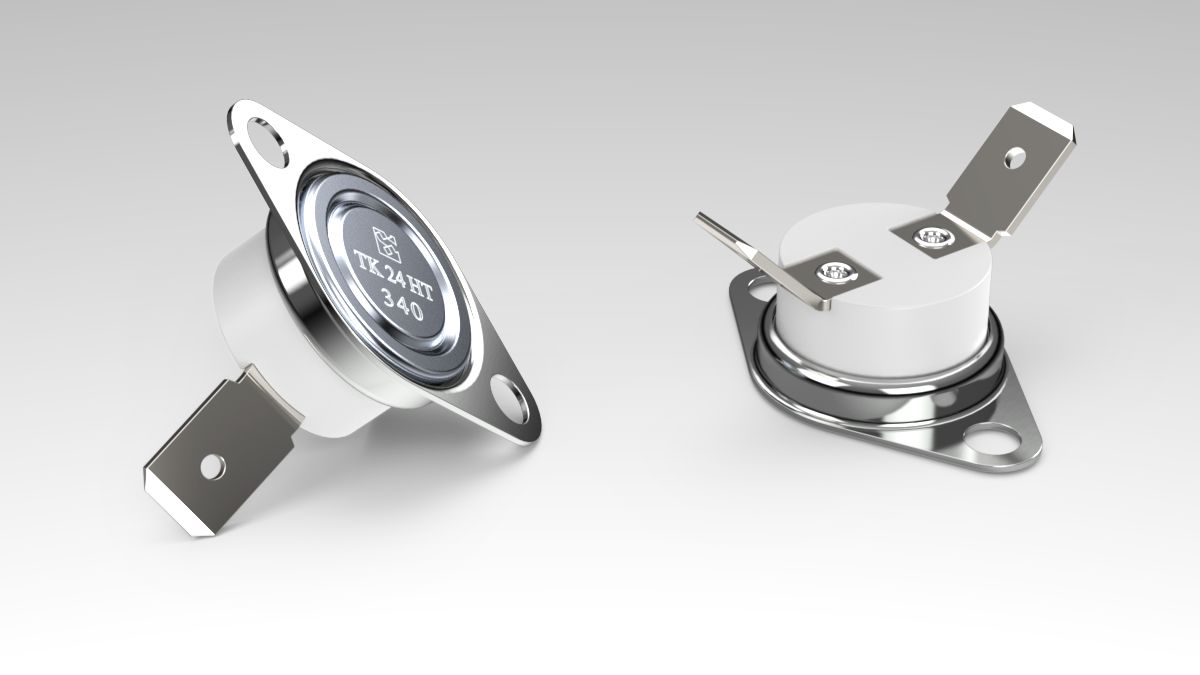

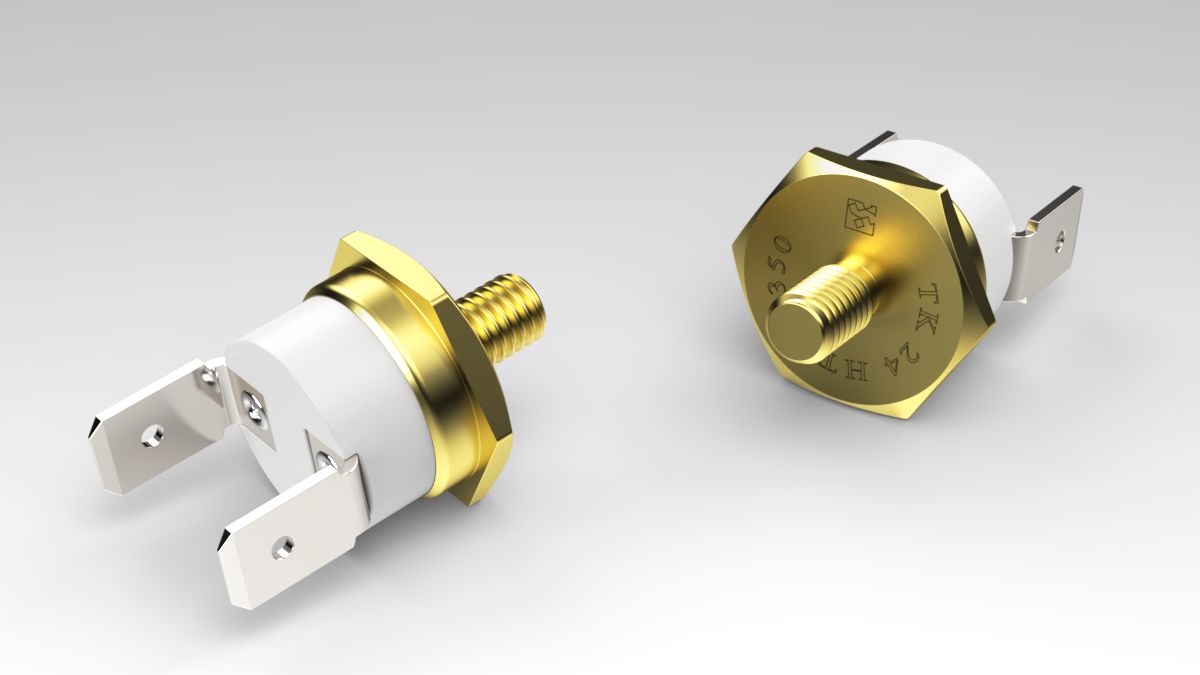

High temperature bimetallic temperature sensitive switch or cyclic operation device with automatic reset control - Thermorex TK24HT

Thermostat ТК24 (DIN EN 60730-1) is a temperature sensitive device, with cyclic operation. It is designed to maintain the needed temperature between two predetermined temperature limits, automatically controlling the on-and-off of the electrical circuit.

APPLICATION: This thermostat is widely used in a broad range of temperature control applications for consumer, industrial and commercial products.

Note: Besides its variety of standard configurations the thermostat can also be customized to the specific technical needs of the customer.

 Download the product brochure
BASIC TECHNICAL DATA
Parameter Value
Rated voltage, V, not more ~250
Rated current, A, at power coeff. 0.95, not more 10
Rated current, A, at power coeff. 0.6, not more 6.3
Number of automatic cycles, at rated current 10 А and power coeff. 0.95, not less than 10000
Operating temperature, °C 200°C — 425°C
Tolerance of operating temperature, °C ±6
Reset temperature, lower than operating temperature, °C, by 60±10; 100±10; 150±10
Transient resistance, Ω, not more 0.05
Contact operating time, ms, not more 3
Electric strength of insulation, V, not less than 1500
Insulation resistance, MΩ, not less than 50
Heating speed, K/min minimum-0.1, maximum-1.0
Degrees of protection provided by enclosure IP4X
